Chris68chevy's 02 Trailblazer build

[Chris68chevy]

I started with a 2002 trailblazer I picked up on a steal for $2000 all stock 4.2l engine with 3.73.

*Current:

*Suspension: Mark's 3" suspension lift kit. Flipped UCAs. Removed both sway bar. Front struts are bilsteins with moog 81114 springs. Rear shocks skyjacker n8030s. 4.10s up front and 4.10s with 8.6 axle in the rear.

*Exterior: Mark's 3" body lift. 03-07 Silverado tow mirrors wired for a trailblazer for added visibility, switched out with stock when not towing. MDBFAB skid plates, and Mike's 3" body lift winch bumper with Tuffstuff4x4 10k econ winch mounted to it. Also added flexyflares and built a custom made fold down tire carrier for my spare 35x12.50r15s.

*Wheels/tires: Currently I'm running 35x12.50r15 BFG A/T KOs on 15x8 Pro Comp Xtreme Rock Crawler Series 97 rims.

*Engine: Deleted intake resonator

*Interior: Pioneer AVH-X2700BS double din, Boss audio door speakers all around, with 1 Boss audio 12" sub power by Boss audio amplifier. Installed Cobra 19XS Cb radio with a 3 ft firestick antenna on driver side cowl area. Custom mount for LG G-Pad 3 with AT&T service for maps, and dashcommand.

*Electrical/Lighting: 6000k Hids in stock LT retrofitted lights with quad beams, relay for hids, secondary underhood fuse block for wired accessories, upgrading all battery grounds and positive wires with 0 awg wire.
-------------------------------------------------------

[Chris68chevy]

[Chris68chevy]

This was right after the lift was on. We had to take it out. I have videos I'll post after I get them from the ol' lady.

[Chris68chevy]

Finally found time in my schedule to flip the UCAs before the alignment.

[Chris68chevy]

Finally got my tires mounted and installed. Tire shop wouldn't touch them while installed on the truck because of the adapters being a liability. So I pulled them off one at a time in the empty lot across the street and did it that way. Gotta little trimming I'll have to do tomorrow not too big of a deal. Then hopefully my 3" front lift will be in around my next two days off.

[Chris68chevy]

More recent photo I need to get my transfer case replaced before winter hits. I've missed out on several opportunities to hit the local trails with some of my buddies due to having 4wd issues.

[Chris68chevy]

Installed some rock lights and relocated my switches for the rock lights and lightbar. I still need to order about 6 more lights. 2 for the front, 2 for the back, and 2 (1) for the front of each rocker area. I will be adding led pods for reverse lights as well for extra light that will be hooked up to my third switch. I need to clean up the switch area still yet.

[Chris68chevy]

Couple pictures of how the Cb was mounted, I picked the Cb up for free, it didn't come with brackets for the radio or the mic so I made some out of some brackets left over from a work project.

[Chris68chevy]

This is how it currently sits with all of Mike's armor on it and the Tuffstuff winch.

[Chris68chevy]

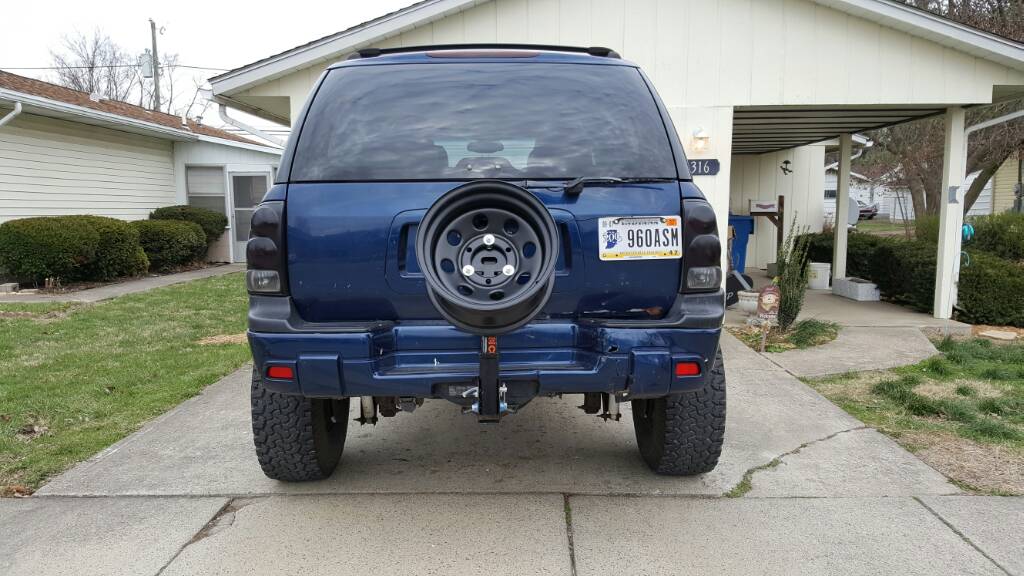

Custom frankenstein spare tire carrier, made from a Curt spare tire carrier and a folding hitch assembly. Spare tire will be mounted up tomorrow after work, if FedEx gets it to me in a timely fashion.
