The Best Ways to Mount to the TB Roof

[Trail X]

This is something that we've all thought about when designing/mounting a roof rack.

There are many ways of going about this... here are a few I have seen/heard of so far:

• JB welding a nut to a plate
• Using a square-holed square washer with a carrier bolt
• Bolting through the entire rack
• Screwing into the roof rack mounting holes
• Using a wood screw into the roof rack
• Making your own mount

Lots of options...

So even if I listed your idea here, please explain your method fully and provide pictures/etc.
Let us know if it's worked for you and what you would do differently if done again.
Any pictures of long-term results?


I'll chime in with my own ideas/experiences in a bit...

[Gordinho80]

Spring Nuts...

I've picked up a few 3/8 spring nuts from Home Depot. They measure 1.375" x 0.75". The rails are slightly angled, 1" at the top and approx. 0.92" at the bottom. So a slight taper...

I plan on grinding down the spring nuts to that they fit snug in the rails.

Attached is a pic of approx. how much grinding would need to be done.


(17.89 KiB) Downloaded 956 times

[Trail X]

I've done mine two different ways so far...

------------------------------------------------------------------------------------------

First was the roof lightbar setup:

It was a nut that was JB-welded to the bottom of a 1" wide aluminum plate.





It works fine for light weights, but the JB-weld isn't as strong as I'd hoped. Mine has cracked and been re-welded a few times. PITA. Although the system does seem to otherwise work fine for light loads. For heavy loads I would be concerned that it could slip within the roof rack channel.



------------------------------------------------------------------------------------------

Second was the roof rack setup, which was an improvement:

This used a carrier bolt inserted into a square washer with a square hole. This is permanently housed in the roof rail for easy on/off of the roof rack. The key here to carrying the heavy loads is the rubber. The rubber increases the friction between the rack components, so the only stresses that the carrier bolts see are tension. All lateral loads are transferred through the rubber.



It works well, but I wonder if there is a more elegant solution...

[janesy86]

I just took off my lightbar since I haven't really been using it and while unbolting it my JB weld cracked on both sides and the bolts were just spinning so I had to bang it off with a hammer...

But like you said its fine for lighter loads.

[Saxis]

For something like the lightbar, would it be possible to take a stock crossbar and drill through it to mount the lights? I know the stock crossbar is composite or something, so not sure if it would crack or not...

[The Roadie]

I can't be happier with a solution that can't be stronger unless I added more rivnuts to the roof. Just take the entire rack off, drill through the bottom of the metal rails, and go upwards with hardened 5/16" bolts. I worry about other stuff before I worry about 500 pounds of overloaded roof rack flying off the vehicle. After my first two experiments with rectangular nuts failed by starting to loosen up, I just said ENOUGH IS ENOUGH and jumped all the way to bulletproof. Non-adjustable.

[KE7WOX]

Hey Mario, did you find those in the hardware section with all the bolts and nuts?

[Gordinho80]

They were actually in the electrical section at Home Depot...

[KE7WOX]

k thanks.

[bgwolfpack]

Just want to throw this out. I found, what looks to be a good maker of light bars. http://www.carr.com

Has anyone used this product?

[irishboy02]

Wow i like those. Will these mount into the tracks on the roofrack or will the attach into the doors like it shows in the picture?

[bgwolfpack]

If you're new here be sure to check out the AlekG blog site for another option and other ideas.

[Jon A]

In shopping for a roof rack, I wanted something big, strong but low profile (garage fitment issues). Although Baja recommends the standard Mule for Trailblazers, I was convinced the Mega would fit better and I needed the space.

It did look pretty lousy just mounted to the stock crossbars:

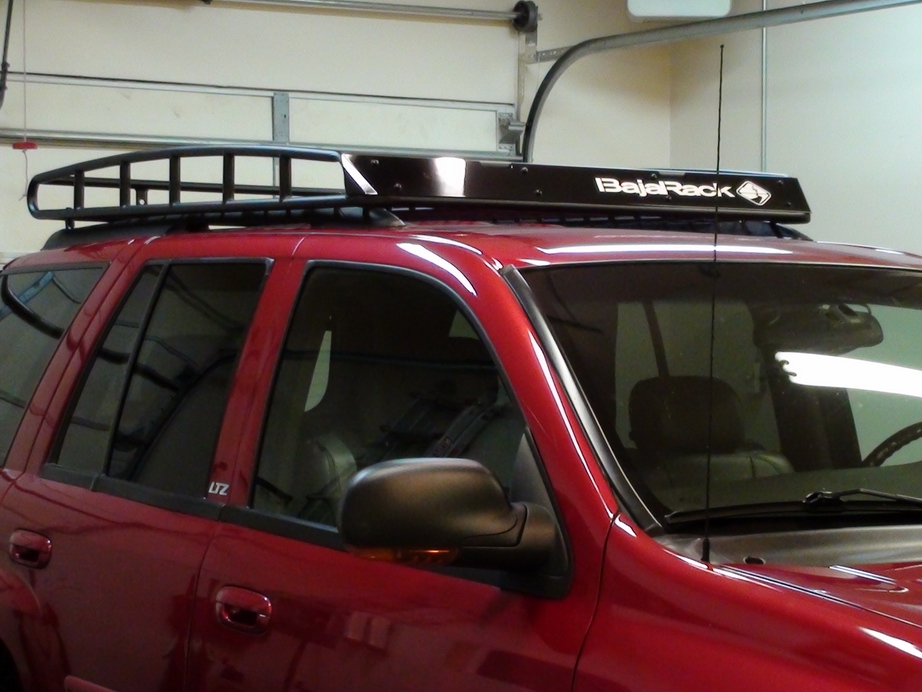

But with the custom brackets it looks nearly made for the vehicle:



<SNIP>

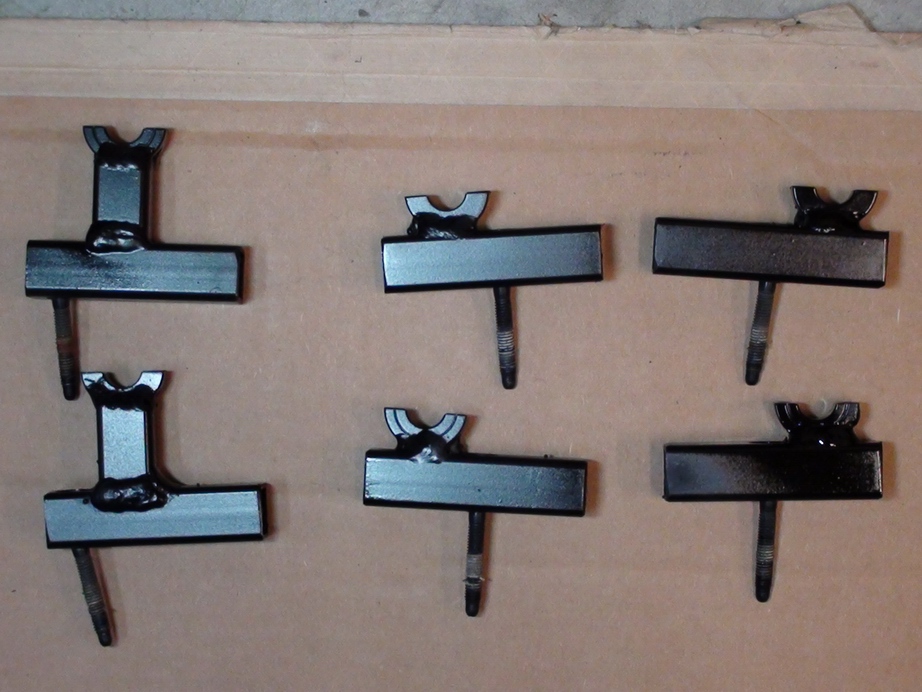

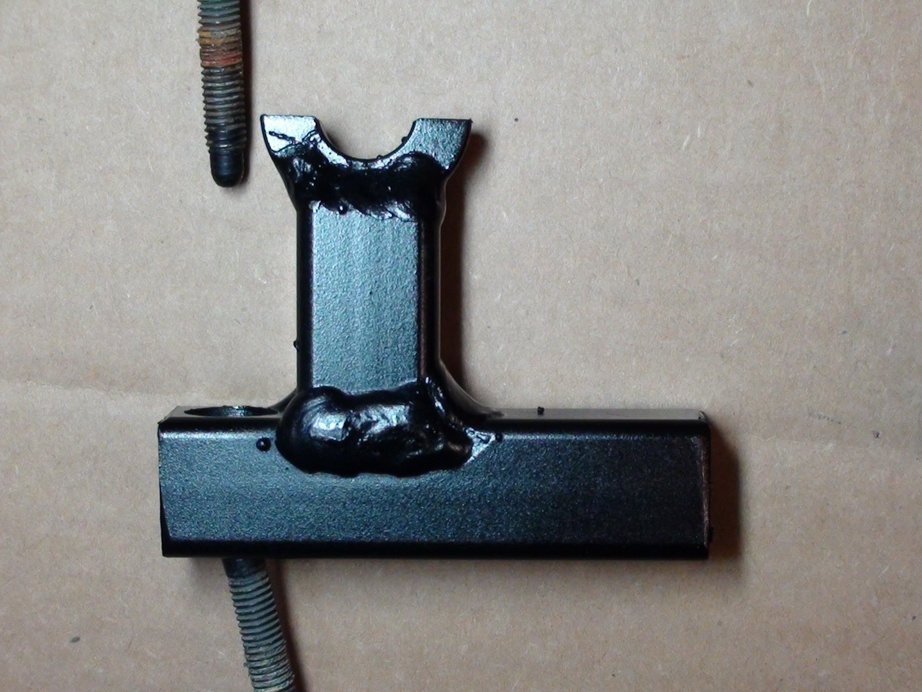

I made the brackets from 3/4" square tubing and 1/2" clamps (both from McMaster):

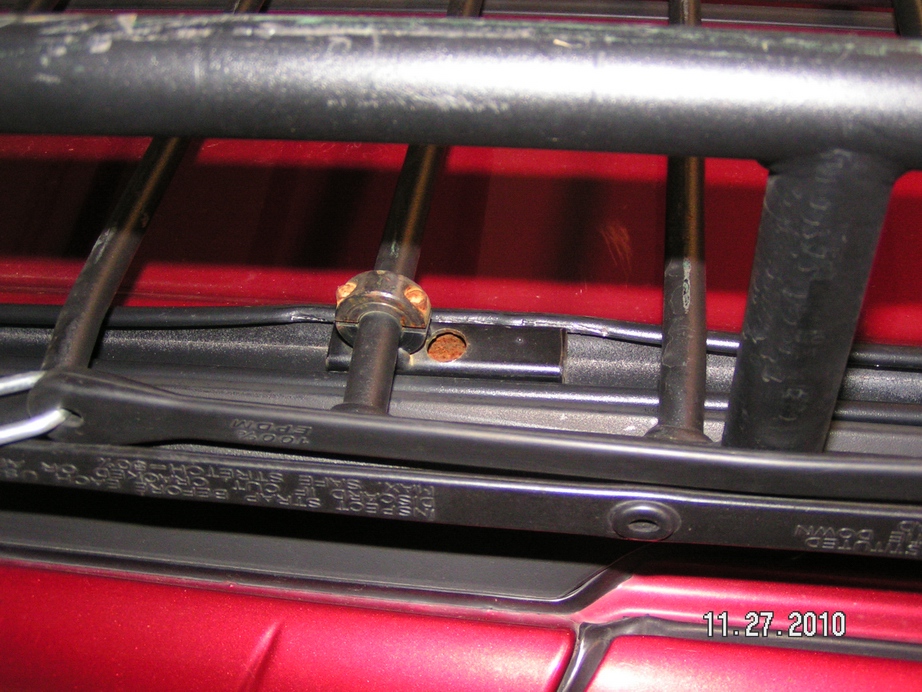

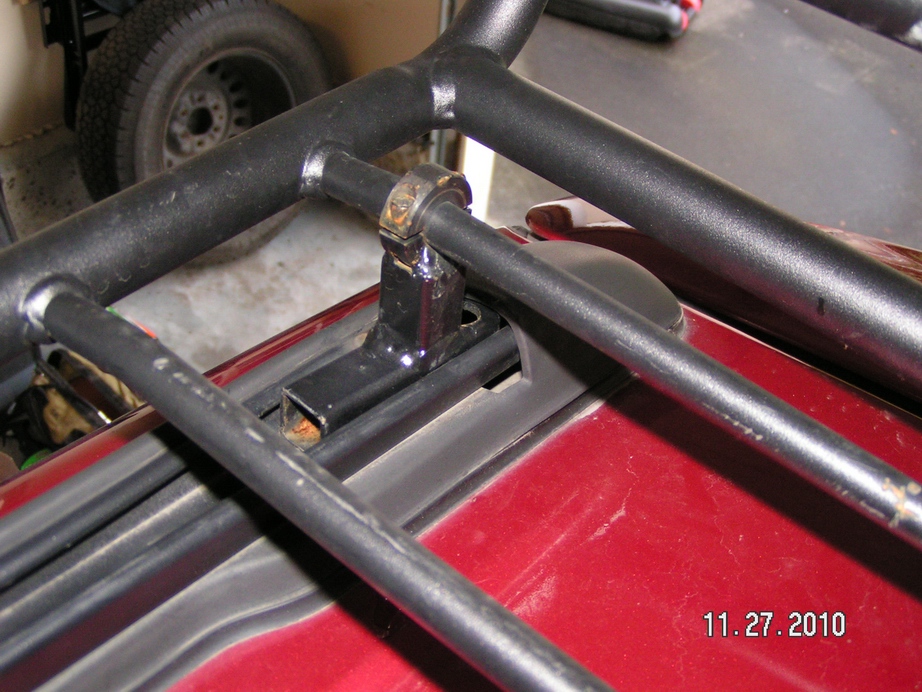

They fit inside the tracks but you do have to spread them a bit--so don't use this method if you want to use the stock crossbars in those locations in the future.





With six total locations and a direct loadpath you have many times the strength of the stock setup. Do a better job of prep and paint on them that I did though as you can see a bit of rust on mine already...I'm going to have to take those off and hit them again.

[jolly01]

I have a kayak rack idea knocking around my head. I made my measured drawings (would upload, but the scanner is packed) I will post pics and updates as I go through the fab work. Think of a clamp for the factory cross rails, a vertical riser, and horizontal rollers like the chassis of an old roller skate. That is the best way I can describe it.

[dirty anton]

with the surco roof rack to me it sat too tall with their mounting brackets with a tire up there. so i got some flat metal stock and bent and cut my own brackets with 3 holes drilled through them. i used the threaded squares that came with the surco mounting kit. got 8 bolts med and 4 bolts long and bolted it(lock washers) to the track. the 4 long bolts go through the existing strap and holes that hold the rack together then drilled through bottom of surco rack and bolted in to threaded square in existing roof track.hope this does not confuse also there is now 3 bolts at all four corners compared to 2 bolts that come with the surco kit. the rack now sits flat on the trucks rack. alot sturdier. i just check the bolts every month,no problems at all.

[dirty anton]

home made brackets

[jolly01]

I have a kayak rack idea knocking around my head. I made my measured drawings (would upload, but the scanner is packed) I will post pics and updates as I go through the fab work. Think of a clamp for the factory cross rails, a vertical riser, and horizontal rollers like the chassis of an old roller skate. That is the best way I can describe it.

I just done my materials pricing and I can bring this in for less than $50.00!

[jolly01]

Had to change the plan like five times, but we finished up the Fab work and tried a dry fit. Looks good just a little high. The camera batteries were dead. Pics will be posted by the weekend. The paint work should be done by then.

[jolly01]

When the weather warms back up I am going to redo the finish, but they work well for now.
Here is a shot from the back. The rollers flip to near vertical to help with the intial lift.


once the boat is up the front saddles are a non slip coverd foam to prevent the boat from going to far forward and onto the hood


The next thing to do is trim down the front a little and that should allow a full raising of the rear gate.

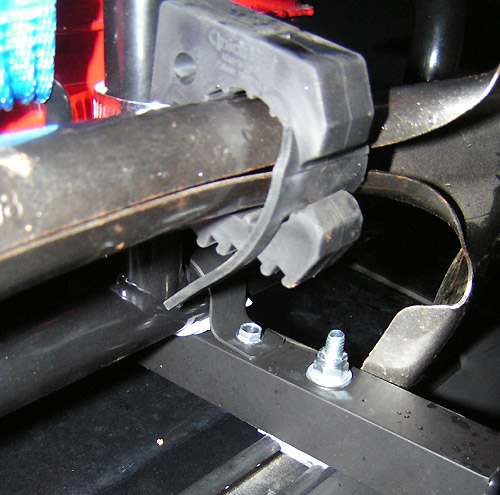

I replaced the factory cross bars with 1 inch square tubing. I was afraid that the factory rails would not be strong enough. The boat rack is actually four peices that slip on and simply bolt on. A moderatly easy mod saving over $100 from buying a similar set up that may not even clear the lights.

[v7guy]

Looks pretty alright! How much have you used it so far?
