broken disconnect housing

G80, GU6, GT4, GT5, WTF? This section is for gearing and driveline stuff.

by jetrail » Sat Jul 11, 2015 4:36 pm

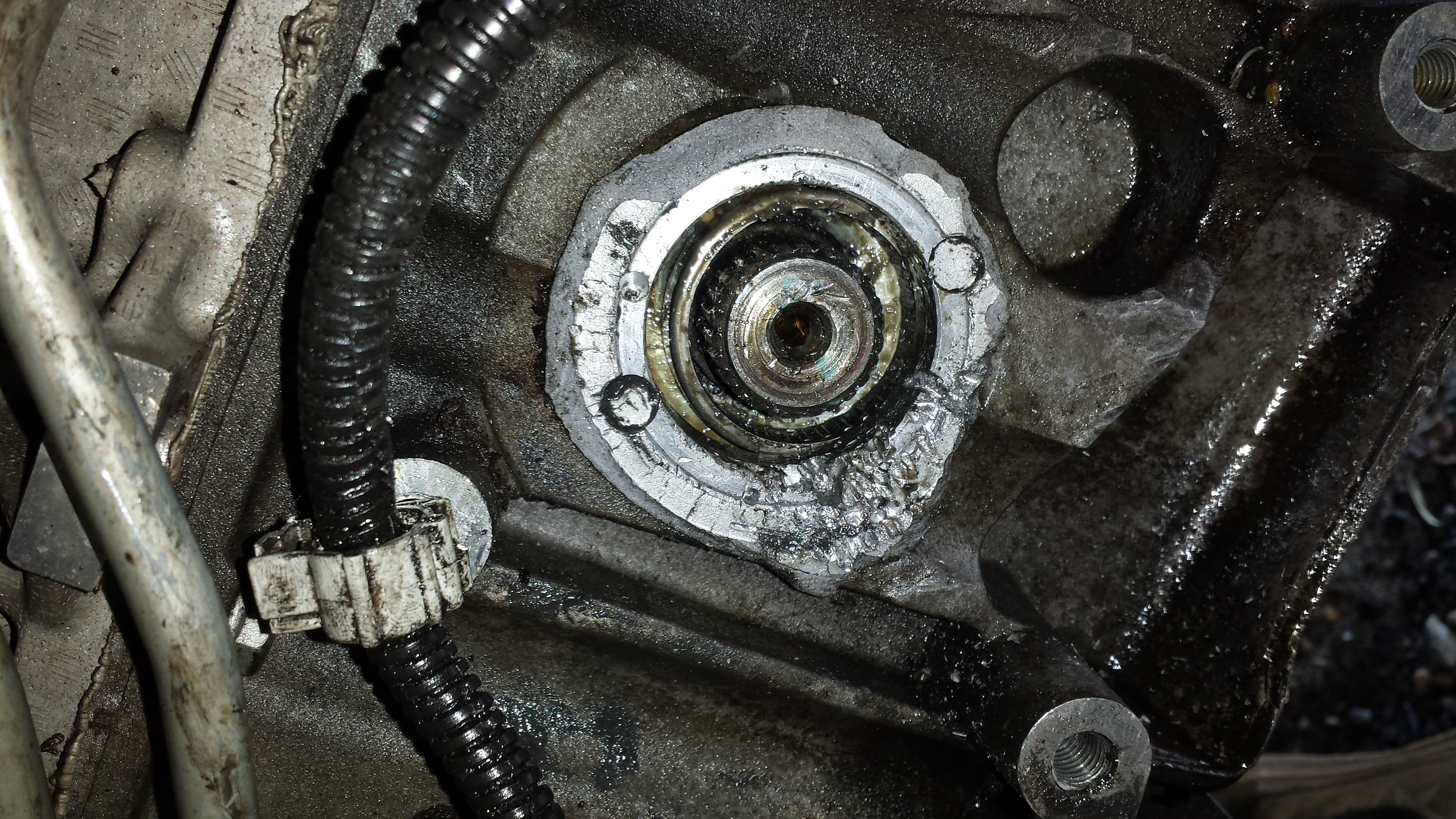

Hi everyone , I'm a noob, I've done a ton of research and like other post my disconnect housing has snapped off during removal . I know other members posted they drilled the housing to break it up , but my question is where do I drill and what size drill bit do I need ? , any help or advice will be greatly appreciated, I'll attach a pic of where I'm at


Thanks
John
Attachments
jetrail
Newbie

Posts: 3
Joined: Sat Jul 11, 2015 2:25 pm
Name: John
Vehicle Year: 2002
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by Norcrosski » Sat Jul 11, 2015 9:27 pm

Just drill broken section of the disco in a couple of places and and firmly hit the sections with a chisel/ flat head screw driver as far as drill bit as big as u feel comfortable drilling iwith in the oil pan
Norcrosski
Off-Roader

Posts: 149
Joined: Wed Jul 24, 2013 12:45 pm
Location: Nc, Robbinsville
Name: Andrew
Vehicle Year: 2002
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by v7guy » Mon Jul 13, 2015 11:32 am

Essentially, yup

Take it slow and remember the piece in the oil pan is probably only about 2" deep.

Good luck!
