DIY: Offroad Roof Light Bar

[fishsticks]

I picked up a set from this guy. He's cheap, fast and combines shipping. He usually throws in some extra bulbs as well.

[galacticfuzz]

Finally got around to finishing and taking pics of my bar.

close up of the lights

lights on (I know, need a night shot and not in garage....)

Switch location, I will be redoing the bracket with better bends and having a longer bracket to allow more switches as well as it being painted.

[Mudwheelin]

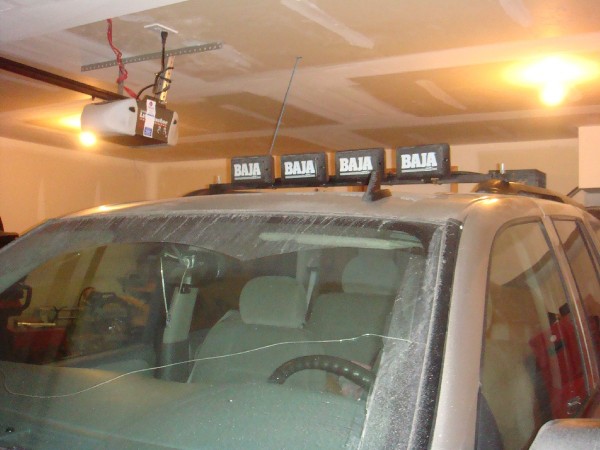

As some of you may know, I was having a hard time with the last light bar. It was so frickin loud! So I built this one and did a way better job installing it.

1" Steel Tube
Painted flat black

I drilled through the roof...that was alittle scary but had to be done. So hope you like the pics!

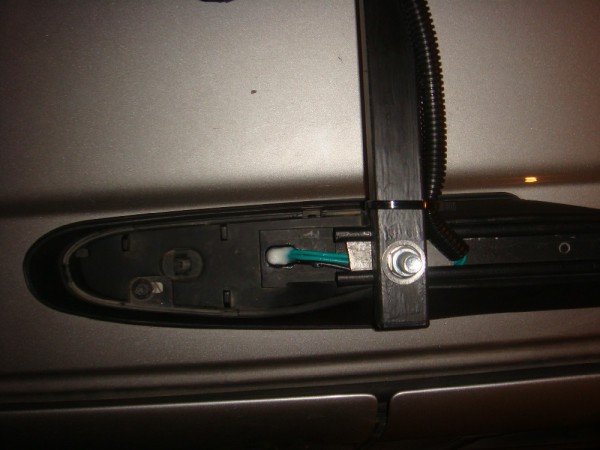

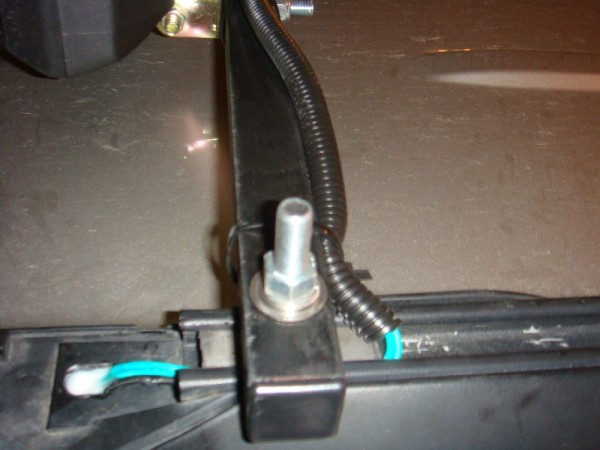

Where I drilled through

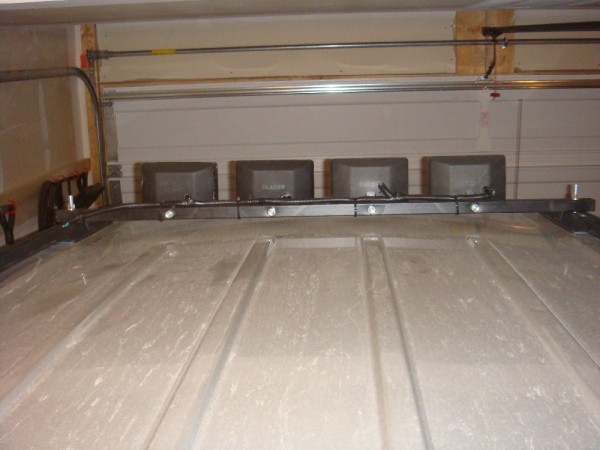

The Back

DSC04254.JPG[/attachment]

[Outlaw_99]

Nice.. Looks like a clean install...

[Mudwheelin]

Ya the install is perfect! No wires anywhere!

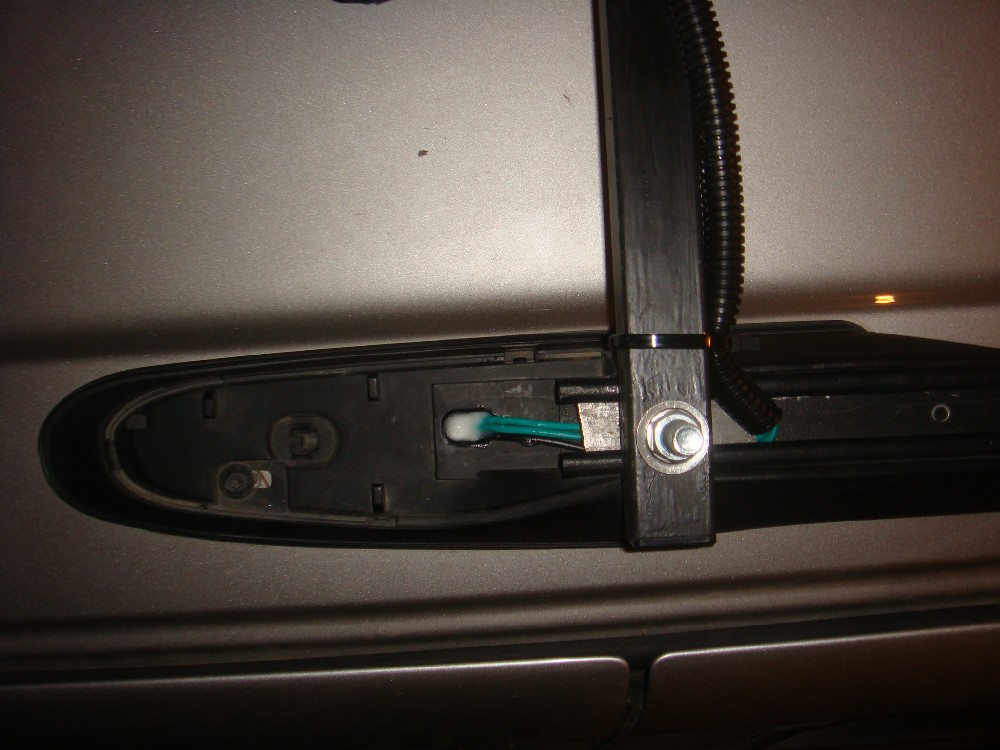

Nice clean look. Used silicone to plug the hole.

Another front.

[DirtyBacon04]

Can't wait till I have a garage and workspace so I can start these types of projects!

[Outlaw_99]

Good job...If I was local, I would pay to have one done.. Heh


Sent from my iPhone using Tapatalk

[Mudwheelin]

Thanks man. I appreciate that!

[Trail X]

Looks nice Christian!

I assume you're not planning on ever removing it or moving it? Doesn't look like there's a plug anywhere on the wire.

No noise this time?

[Mudwheelin]

Thanks James. Couldn't have built it without you! I really don't plan on taking it off anytime soon. I will be putting connectors on this weekend just in case I need to take it off. There is NO noise at all. Not sure what I did with the last one that made it so noisey...

[v7guy]

Looks pretty nifty!

[Mudwheelin]

Looks pretty nifty!

Thanks man.

[SaltWaterDrinker]

Really nice, dude. I like what you did with the drilling; I have loose/visible wires - you certainly made it so there are none!

I cant tell from the pictures - but with that set up, would you be able to mount two more lights - kind of off at a 45 degree angle? How about a 90 degree angle - kind of like alleyway lighting?

Just curious - I am thinking about taking this on in the near future.

[Flying Monkey]

Very nice job. Just curious why you went with 4 lights versus 5 to fill the space? Ive been debating the same thing is why I ask. Was just thinking 5 would "fit" the truck width better. Was there a reason for just 4?

[janesy86]

Very nice job. Just curious why you went with 4 lights versus 5 to fill the space? Ive been debating the same thing is why I ask. Was just thinking 5 would "fit" the truck width better. Was there a reason for just 4?

Guessing because they come in packs of 2. When I had a bar, and most others on here, rock bars with just 4 lights...

[Flying Monkey]

Ah. I didnt mean any disrespect with the question, this is 1 of the nicest light bars ive seen made, was just curious. Didnt think about the lights in pairs as all the ones ive been looking at are singles. Im thinking about going with 5 to fill the width a bit more, but will have to look at it closer. since my shoulder surgery is tuesday it will be awhile before I get to tinker again anyway.

[janesy86]

Oh ya, you're not disrespecting anything... Just think that may be the reason, at least I know it was for me. 5 would look good tho, and fill the space nicely.

[Mudwheelin]

Hey sorry guys, I was out quading all day. Thanks for the compliments! I went witth 4 lights because they came in packs of 2. Five would look great on the TB though. All I can say about it is...drill through the roof. It makes the install feel complete, and looks good to.

[Trail X]

I think the number of lights really depends on spacing used and width of lights.

I don't think I could have fit 5:



Christian, I thought about combining your thread with this one: viewtopic.php?f=27&t=8, but figured I'd ask your opinion before doing it.

[Mudwheelin]

I would be perfectly fine with that James. Thank you for thinking mine was worthy enough! I'm super happy with the way it turned out.
