Anybody know what this connector name is ?
5 posts
• Page 1 of 1

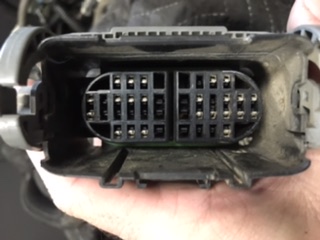

I’m trying to figure out what the 38 pin quick release looking connector is called so I can locate a diagram and trace some wires for repairs and can figure out what connector identification is.
- Attachments
-
- 39DA1585-2F8D-4348-9020-0F8893CCA4CF.jpeg (26.6 KiB) Viewed 14520 times
- Blazentpi
- Newbie
- Posts: 8
- Joined: Thu Jan 02, 2020 3:15 pm
- Name: Jay
- Vehicle Year: 2003
- Vehicle: Chevrolet Trailblazer EXT
- DriveTrain: 4WD w/ G80
I guess a better pic of where it is would help too.
- Attachments
-
- Blazentpi
- Newbie
- Posts: 8
- Joined: Thu Jan 02, 2020 3:15 pm
- Name: Jay
- Vehicle Year: 2003
- Vehicle: Chevrolet Trailblazer EXT
- DriveTrain: 4WD w/ G80
I think I finally identified it and posting in case anybody else is needing to figure it out. It’s C107 and appears to only be on the 5.3l equipped models.
- Blazentpi
- Newbie
- Posts: 8
- Joined: Thu Jan 02, 2020 3:15 pm
- Name: Jay
- Vehicle Year: 2003
- Vehicle: Chevrolet Trailblazer EXT
- DriveTrain: 4WD w/ G80
My 2002 4.2 also has that connector.
I would attach a picture but the website repeatedly tells me my picture is invalid.
I would attach a picture but the website repeatedly tells me my picture is invalid.
- TJBaker57
- Newbie
- Posts: 1
- Joined: Fri Aug 30, 2019 3:27 pm
- Name: Tjbaker
- Vehicle Year: 2002
- Vehicle: Chevrolet TrailBlazer
- DriveTrain: 4WD w/ G80
I’m now having trouble finding a pinout for it. I can only find the pinout for a 2006 which has a lot more and differences than a 2004. Any body have a pinout?
