Marshall is now LIFTED!!!

by **ksmarshall** » Sat Oct 27, 2012 10:11 pm

2005 Chevrolet Trailblazer LS 4.2L, 4WD

Suspension Modifications:
3'' Marckmc lift
1.5'' 5x5 wheel spacers
blisten struts
skyjacker rear shocks

Exterior Modifications:
None

Engine Modifications:
None

Interior Modifications:
None

Recovery Equipment:
None

Electrical Modifications:
None

Tires:
265/75/16 TOYO AT2

Well guys we managed to get the lift in this afternoon , thought i would go ahead a list what all i have done just incase there are any new guys looking into going the same direction.

Parts:

Blisten struts $132.66 Part number # 24-10336
Rear shocks. Skyjacker $111.85 Part number #N8030
Markmc 3'' lift kit $249
1.5'' wheel spacers 5x5 (for now :facepalm:

) from markmc $219
265/75/16 Toyo AT2 ALL TERRIANS $665 -carry out

GRAND TOTAL $1377.51

by **ksmarshall** » Sat Oct 27, 2012 10:12 pm

before the lift

by **ksmarshall** » Sat Oct 27, 2012 10:27 pm

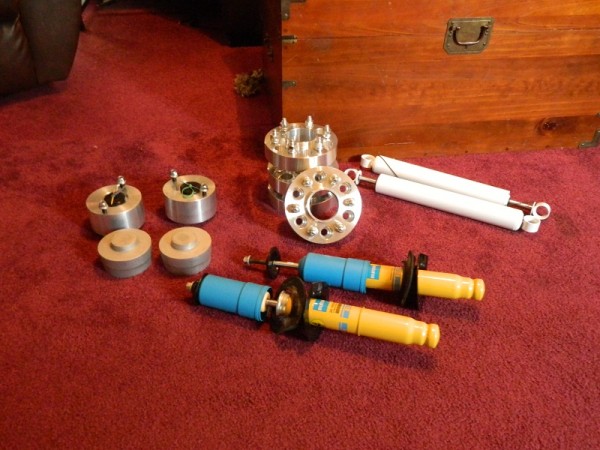

ALL OF THE PARTS

by **ksmarshall** » Sat Oct 27, 2012 10:38 pm

stock height driver side fender is 33''

by **ksmarshall** » Sat Oct 27, 2012 10:40 pm

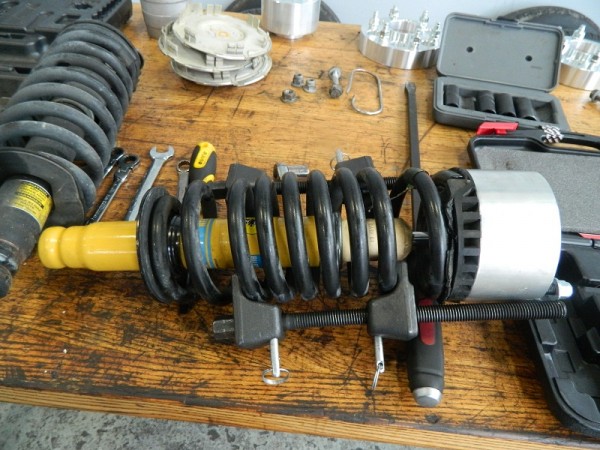

compressing the new springs (i know i forgot the shock boot when i took the pic i took it apart and put it on lol)

by **ksmarshall** » Sat Oct 27, 2012 10:42 pm

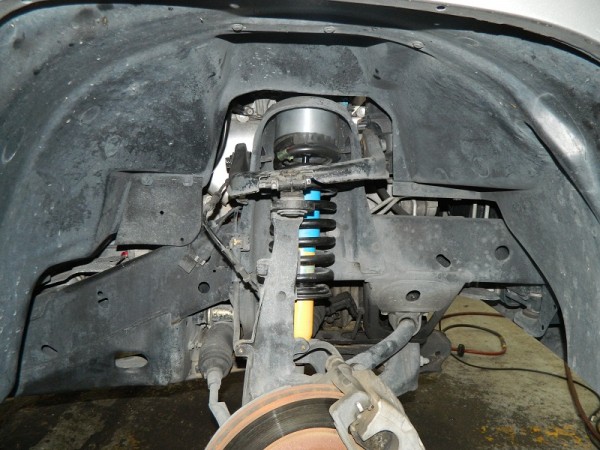

struts intalled in the truck

by **ksmarshall** » Sat Oct 27, 2012 10:43 pm

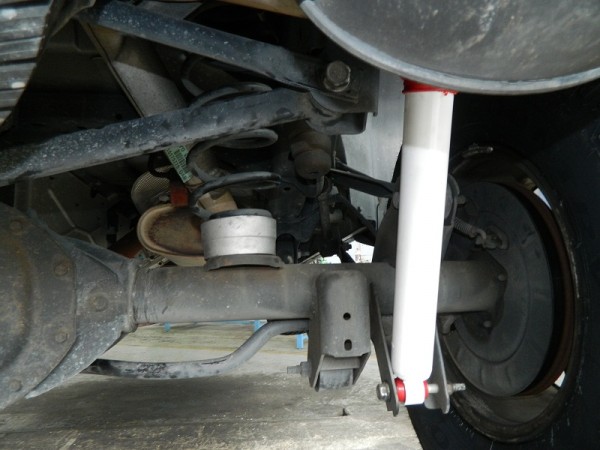

rear spacers and new shocks installed

by **ksmarshall** » Sat Oct 27, 2012 10:45 pm

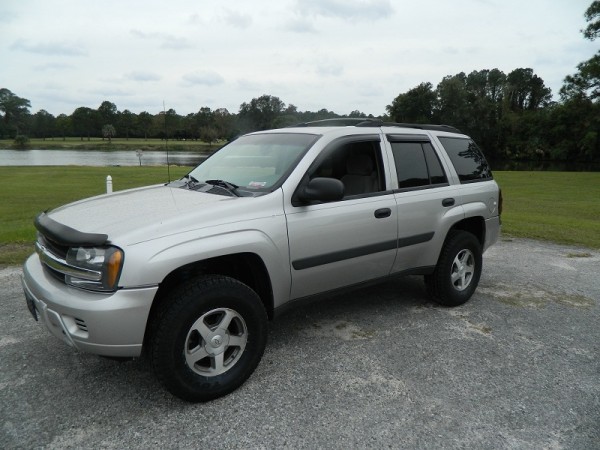

after the lift

by **ksmarshall** » Sat Oct 27, 2012 10:46 pm

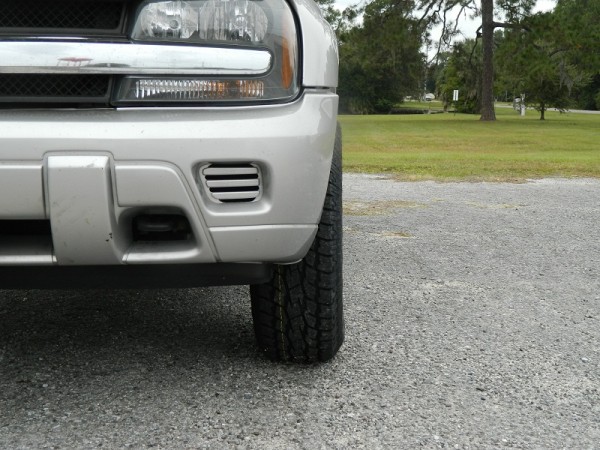

front end shot

by **ksmarshall** » Sat Oct 27, 2012 10:48 pm

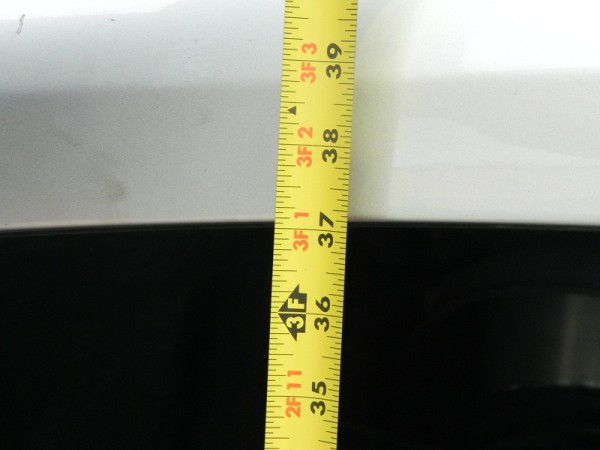

now at 37''

by **ksmarshall** » Sat Oct 27, 2012 10:49 pm

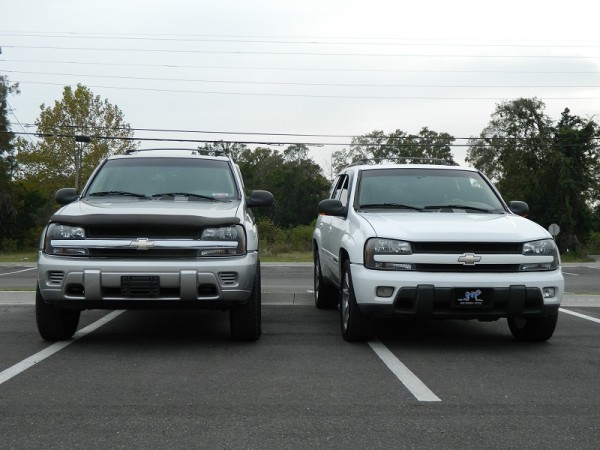

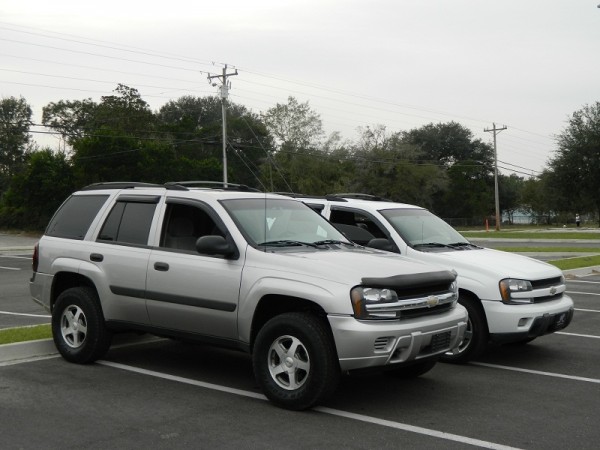

with a stock trailblazer

by **ksmarshall** » Sat Oct 27, 2012 10:50 pm

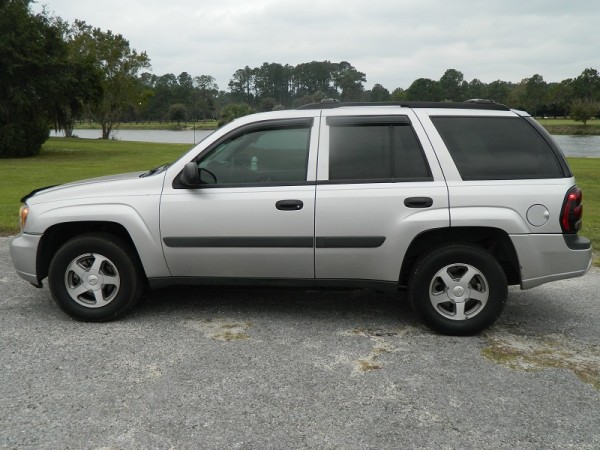

side shot

by **ksmarshall** » Sat Oct 27, 2012 10:52 pm

the white one is pretty clean for a 2wd

by **ksmarshall** » Sat Oct 27, 2012 10:57 pm

overall im extreamly please with the way the truck rides and drives now , it handles better than it did stock not to mention it looks awsome , i would like to thank everybody on offroadtb for the help and putting out the information to make this job just that much easier . and espically to mark for the great parts a techincal support when i needed it . thatks everyone.

by **ksmarshall** » Sun Oct 28, 2012 7:53 am

alignment is allready schedueld for monday morning , and i allready cut new tubing and spacers to fit the factory bolts in the rear shocks , i may have to say you have a great eye though , you can tell who has been doing this stuff a while lol. thanks for the heads up

by **ksmarshall** » Mon Oct 29, 2012 11:29 pm

Got the alignment done this morning and I couldn't be happier with the ride now , the truck seem to dart /wave at higher speed but that was due to my horrible camber angle. now rides like a dream just need to save up for some wheels to give the truck a more aggressive look

by **boog2006** » Tue Oct 30, 2012 8:46 am

ksmarshall wrote:now rides like a dream just need to save up for a wheel and tire combo that will improve the offroad capability...

Fixed that for ya...

by **drwfaulk** » Tue Oct 30, 2012 10:39 pm

boog2006 wrote:
ksmarshall wrote:now rides like a dream just need to save up for a wheel and tire combo that will improve the offroad capability...

Fixed that for ya...

Oooooooo;) good catch!

by **v7guy** » Thu Nov 01, 2012 3:14 am

Sounds like a recipe for a build thread

by **ksmarshall** » Fri Nov 02, 2012 2:17 am

i was orginally posted in the build threads but i didn't have my post set up the same way as everyone else so i had it moved over here , plus i like to hear suggestions from you guys the good and even the not so good comments
