by MrSmithsTB » Tue Sep 07, 2010 10:44 pm

HARDTRAILZ wrote:I am using my steering extention from the 2 inch with the 3 inch...i believe they are the same.


That is good to know. May have to rig something to get up and running and then switch them out when he has extras.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by MrSmithsTB » Thu Sep 09, 2010 7:05 pm

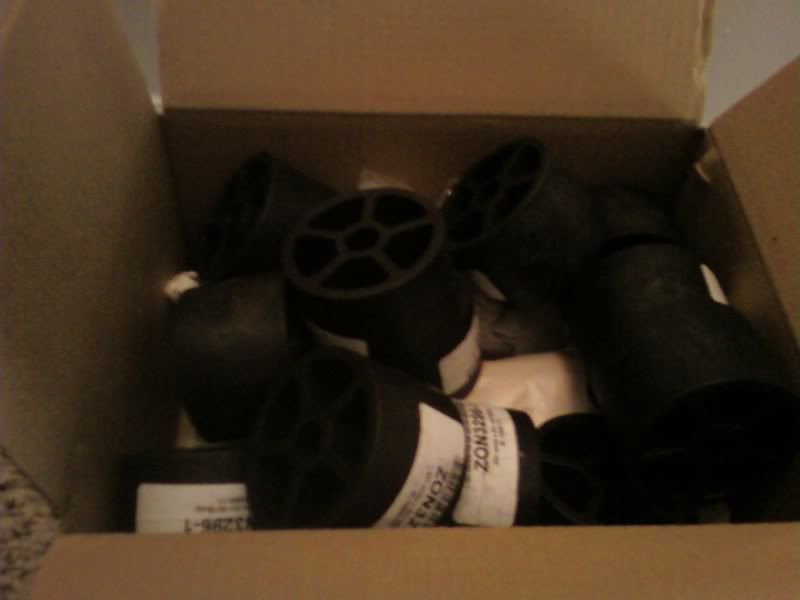

Body lift blocks have arrived:

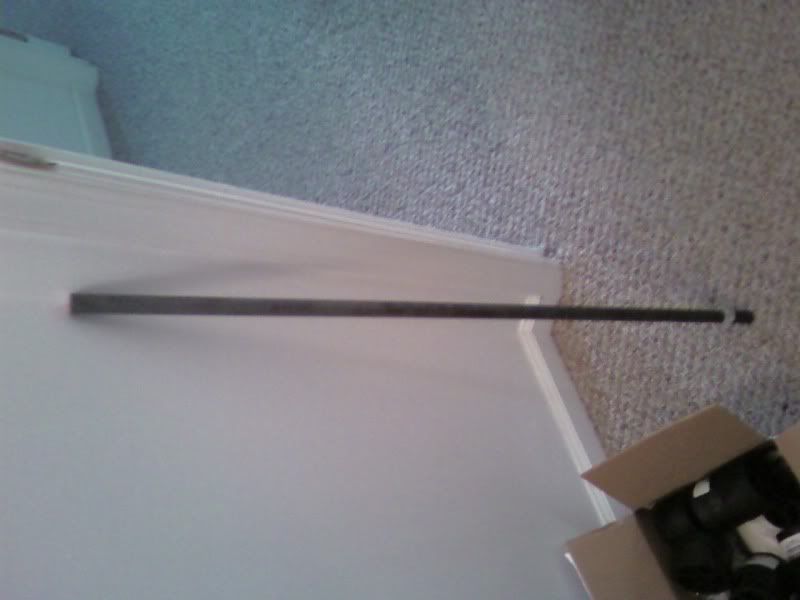

And this is what will become the steering extension over the weekend:
3/4" x 36" steel round bar. Draw some lines, grind some metal, and drill some holes and this will be as strong if not stronger than the production extensions. Going to have plenty left over. If I determine that it is totally safe, I won't be opposed to making a few extras.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Blask3 » Fri Sep 10, 2010 7:52 am

Looks good. Waiting to find some cash then a body lift may be in the future. Just gotta wait and see.
Jim Blask
GIT-R-DONE

The only Lifted TB in the Valley
Blask3
Member

Posts: 59
Joined: Thu Aug 26, 2010 7:22 pm
Location: Ansonia, CT
Name: Jim
Vehicle Year: 2003
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by MrSmithsTB » Fri Sep 10, 2010 8:23 pm

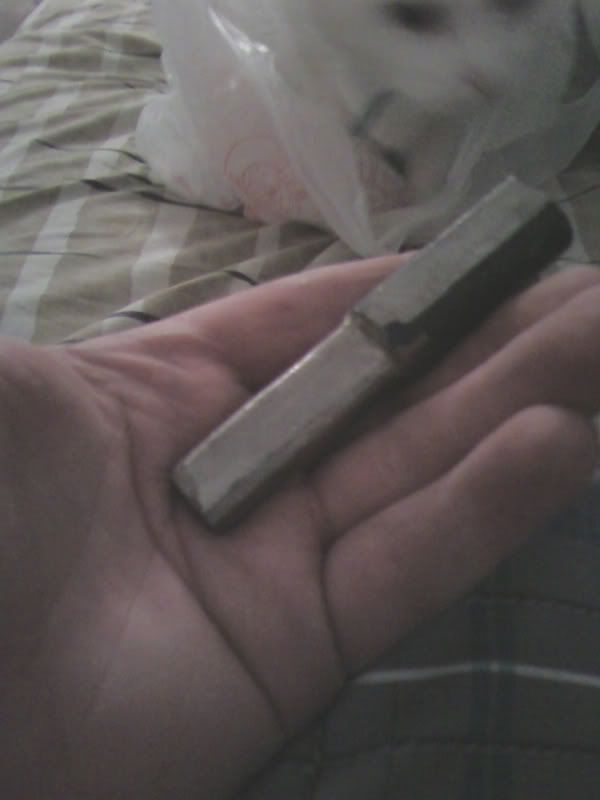

It seems I need a stronger bit to drill the holes, but I've gotten the hard part finished in regards to the steering extension. Since the pipe I bought is the same size as the steering shaft, and the shaft itself it hollow, I ground down the rod to fit inside the shaft instead of outside. It seems to be very strong and I doubt there will be any problem with it. I know it is not the prettiest thing in the world, but it will be hidden.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by irishboy02 » Fri Sep 10, 2010 8:28 pm

Performance over aesthetics. Best of luck!
Gettin' Dirrty in Jersey :flex dirty:

2003 GMC Sierra z71
7" FTS lift
35x12.5 Toyo MT on 18x9 MotoMetal 962
User avatar
irishboy02
Addict

Posts: 840
Joined: Thu Oct 15, 2009 9:28 pm
Location: Jurzie boy
Name: Brendan
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by MrSmithsTB » Fri Sep 10, 2010 8:31 pm

irishboy02 wrote:Performance over aesthetics. Best of luck!


Thanks, Brendan. Doesn't look to bad, but I haven't don any finishing passes with the grinder. Waiting until all of the test fitting is done and then I'll clean it up a little and throw some paint on it. I may have to install this all this week. If not, I'm thinking about trying to get up to Central somewhere to get a little mod meet goin.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Regulator1175 » Mon Sep 13, 2010 1:55 am

MrSmithsTB wrote:Body lift blocks have arrived:



Are those 3" blocks? I thought you were only doing 2".
Twenty years from now you will be more disappointed by the things that you didn’t do than by the ones you did do.
So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.
- Mark Twain
--Build--
User avatar
Regulator1175
Veteran

Posts: 1047
Joined: Wed Mar 17, 2010 3:48 pm
Location: IN, Warsaw
Name: Matthew McClelland
Vehicle Year: 2002
Vehicle: GMC Envoy
DriveTrain: 4WD w/ G80
Rank: Extreme Offroader

by HARDTRAILZ » Mon Sep 13, 2010 8:12 am

They look like 2 to me.
I hate to advocate weird chemicals, alcohol, violence or insanity to anyone...but
they've always worked for me.
User avatar
HARDTRAILZ
Moderator

Posts: 6342
Joined: Sat Sep 12, 2009 1:49 am
Location: IN, Batesville
Name: Kyle
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Extreme Offroader

by MrSmithsTB » Mon Sep 13, 2010 11:20 am

Only 2", but I got 36 so I can stack up to a 6" lift :gimp:
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Gordinho80 » Mon Sep 13, 2010 11:29 am

36 ???

Are we doing a body life on the gordin-mobile??? LOL
Mario - Build Thread
User avatar
Gordinho80
Lifer

Posts: 2787
Joined: Tue Sep 08, 2009 9:27 am
Location: NJ, Jackson
Name: Mario Almeida
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: 4WD

by MrSmithsTB » Mon Sep 13, 2010 12:23 pm

Haha. I only got 12. Just so you know, It's no nearly as hard to put together a BL as you think. As long as you are willing to fabricate some of your own parts.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Zero » Wed Sep 15, 2010 11:56 pm

I cant wait to see this!
Zero
Veteran

Posts: 1048
Joined: Thu Sep 10, 2009 5:07 pm
Location: Los Angeles, CA / Toronto, ON
Name: Brendan
Vehicle Year: 2005
Vehicle: Chevrolet Trailblazer EXT
DriveTrain: 4WD w/ G80
Rank: Offroad Rated

by MrSmithsTB » Thu Sep 16, 2010 12:09 am

Here's hoping it goes down sooner rather than later. Potentially having some expensive 4x4 issues and may just have to sell some extra stuff.
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by fishsticks » Thu Sep 16, 2010 3:51 am

MrSmithsTB wrote:Here's hoping it goes down sooner rather than later. Potentially having some expensive 4x4 issues and may just have to sell some extra stuff.



I feel you on the expensive 4x4 issues.
11 Silverado LTZ - 6.2L/6l80, 2/3 drop, self tuned
85 Hilux - 3RZ, dual cases, caged, 40s, chromo everything
02 TrailBlazer LTZ - 35s, lockers, balls - Gone but not forgotten - Build
User avatar
fishsticks
Moderator

Posts: 4356
Joined: Thu Apr 01, 2010 11:30 pm
Location: WA, Vancouver
Name: Donny
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Extreme Offroader

by MrSmithsTB » Thu Sep 16, 2010 1:05 pm

fishsticks wrote:I feel you on the expensive 4x4 issues.


Maybe not as severe as yours, but I may be looking at a new transfer case... :hissyfit:
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by fishsticks » Thu Sep 16, 2010 4:30 pm

What's your T-case not doing?

EDIT: Did a quick search on car-part.com. I don't know where in NJ you are but I see T-cases as low as $200 in your area. :cheers:
11 Silverado LTZ - 6.2L/6l80, 2/3 drop, self tuned
85 Hilux - 3RZ, dual cases, caged, 40s, chromo everything
02 TrailBlazer LTZ - 35s, lockers, balls - Gone but not forgotten - Build
User avatar
fishsticks
Moderator

Posts: 4356
Joined: Thu Apr 01, 2010 11:30 pm
Location: WA, Vancouver
Name: Donny
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Extreme Offroader

by MrSmithsTB » Thu Sep 16, 2010 5:16 pm

It's not keeping it's fluid. I have a feeling that it is only the output shaft seal, but just preparing for the worst. I degreased it this morning, and I'm going to check it before dark to see if I can pinpoint the leak.


Edit: We're good. Output shaft seal :friday:
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Gordinho80 » Thu Sep 16, 2010 6:53 pm

Regulator1175 wrote:Fastenal bolts:

1) Part number 35112 M12-1.75 x 240mm 10.9 DIN 931 Part Thrd Plain Hex
Cap Screw
2) Part number 0122040 M12-1.75 x 190mm 10.9 DIN 931 Part Thrd Plain
Hex Cap Screw
3) Part number 95234 1/2-13 x 10.5 Grade 5 Yellow Zinc Hex Cap Screw

These bolts are for the 3" body lift, right?  So 2" body lift would
require 1" shorter bolts....

(2) Part Number 35111 M12-1.75 x 220mm DIN 931 Class 10.9 Plain Cap Screw
(10) Part Number 0122039 M12-1.75 x 170mm DIN 931 Class 10.9 Plain Cap Screw
(2) Part Number 95232 1/2"-13 x 9-1/2" Yellow Zinc Finish SAE J429
Grade 5 Hex Cap Screw

?
Mario - Build Thread
User avatar
Gordinho80
Lifer

Posts: 2787
Joined: Tue Sep 08, 2009 9:27 am
Location: NJ, Jackson
Name: Mario Almeida
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: 4WD

by MrSmithsTB » Thu Sep 16, 2010 8:24 pm

The 2" bolt lengths are:

160mm X 10
200mm X 2
back in the saddle
TB BUILD
User avatar
MrSmithsTB
Veteran

Posts: 1756
Joined: Thu Sep 10, 2009 2:28 pm
Location: EHT, NJ
Name: Bob
Vehicle Year: 2006
Vehicle: Other GMT360/370
DriveTrain: AWD w/ G80
Rank: Offroad Rated

by Regulator1175 » Fri Sep 17, 2010 3:11 am

Gordinho80 wrote:
Regulator1175 wrote:Fastenal bolts:

1) Part number 35112 M12-1.75 x 240mm 10.9 DIN 931 Part Thrd Plain Hex
Cap Screw
2) Part number 0122040 M12-1.75 x 190mm 10.9 DIN 931 Part Thrd Plain
Hex Cap Screw
3) Part number 95234 1/2-13 x 10.5 Grade 5 Yellow Zinc Hex Cap Screw

These bolts are for the 3" body lift, right?  So 2" body lift would
require 1" shorter bolts....

(2) Part Number 35111 M12-1.75 x 220mm DIN 931 Class 10.9 Plain Cap Screw
(10) Part Number 0122039 M12-1.75 x 170mm DIN 931 Class 10.9 Plain Cap Screw
(2) Part Number 95232 1/2"-13 x 9-1/2" Yellow Zinc Finish SAE J429
Grade 5 Hex Cap Screw

?


You are correct, those are for the 3" body lift.
Twenty years from now you will be more disappointed by the things that you didn’t do than by the ones you did do.
So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.
- Mark Twain
--Build--
User avatar
Regulator1175
Veteran

Posts: 1047
Joined: Wed Mar 17, 2010 3:48 pm
Location: IN, Warsaw
Name: Matthew McClelland
Vehicle Year: 2002
Vehicle: GMC Envoy
DriveTrain: 4WD w/ G80
