Gear Ratio Calculator and Tire Size Calculator!

Need new shoes? This is the place to discuss.

by Trail X » Tue Mar 26, 2013 12:28 pm

Interesting. We don't want to get TOO specific with subforums, but you may be on to something. Let me discuss with the team.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by zpbitt » Tue Apr 30, 2013 12:20 am

This is great! Thanks!
zpbitt
Cruiser

Posts: 13
Joined: Sat Apr 20, 2013 3:20 pm
Location: KY, Paducah
Name: Zach
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by Shdwdrgn » Mon May 19, 2014 2:55 pm

Hey it only took me a little over a year to notice there was a sticky about the tools. I'm special!!!

Glad every likes them. The gear ratio calc was put together when I was trying to wrap my head around just how much difference I would see when swapping between 3.42 and 4.10 gears. It was real helpful to match different tire sizes and gears on the same screen and realize that my engine wouldn't be 'screaming' going down the highway with 4.10's. I knew from you guys that 4.56's were also a common one being used, but I wanted a changeable field in case other gears were considered. The hardest part was getting it to actually calculate the colors for the power curve, rather than just hard-coding the results. Since the math is done, the table could also be expanded out to other tire sizes as well.

On the tire calc, the Tacoma site was actually the model I used for my design. I spent a lot of time trying to also plot out the swing of the tire inside a wheel-well with user-entered wheel size and offset, but I just couldn't get it to plot consistently. I still have the code if anyone wants to look, but it would probably be better to just start over.
GT5/G80, 265/70-16, PCMforLess + personal tuning, quad headlights
Self-made steel front bumper / pushbar / skid / CAI / lightbar
Shdwdrgn
Contributing Author

Posts: 440
Joined: Wed Dec 07, 2011 4:04 pm
Location: CO, Longmont
Name: Jeff Taylor
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by Bacnbit » Mon May 19, 2014 3:17 pm

I used this one when looking at tires and gearing and speedo corrections befor finding you guys it has the pretty much everything. Tire comparison size, gearing per tire size etc. See what you think.
http://tire-size-conversion.com/tire-size-calculator/
If it helps great if not no big deal.
User avatar
Bacnbit
Member

Posts: 82
Joined: Mon Apr 21, 2014 4:23 pm
Location: Grand Rapids, MI
Name: Dean
Vehicle Year: 2002
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by Cody_S » Mon May 19, 2014 3:32 pm

Any thoughts as to labeling dangerous zones for gear ratio/tire size combos? Like which combos should be running a transmission cooler or something?
User avatar
Cody_S
Trail-Blazer

Posts: 336
Joined: Thu Oct 14, 2010 7:38 pm
Location: Canton, GA
Name: Cody
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by TBYODA » Mon May 19, 2014 4:49 pm

Cody_S wrote:Any thoughts as to labeling dangerous zones for gear ratio/tire size combos? Like which combos should be running a transmission cooler or something?


I have only read about not going above 32" with 3.42, there has been talk about running 33" with cooler on 3.42 between a few members and I but IMHO you should run a cooler with bypass above 31" anyways because it's cheap insurance.
I would like to know what the consensus is from the other members as what is the max tire size with each gear ratio cause it would help new members. Putting it on the chart could be helpful to every one very much.

Edit: I guess this also depends on your "mission".
2008 TB Radflo coil overs, Z71 rear springs, 2" spacer, skyjacker N8030 shocks, LT285/75R16E Goodyear MTR

My Build ----- MY Youtube Channel
User avatar
TBYODA
Moderator

Posts: 1762
Joined: Mon Apr 01, 2013 9:07 pm
Location: NY, Rochester
Name: Robert Sengillo
Vehicle Year: 2008
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Limited Slip
Rank: Offroad Rated

by Shdwdrgn » Mon May 19, 2014 6:26 pm

So, including the info that mikekey provided in the other thread, how does this look?
http://sourpuss.net/projects/vehicles/t ... arcalc.php
GT5/G80, 265/70-16, PCMforLess + personal tuning, quad headlights
Self-made steel front bumper / pushbar / skid / CAI / lightbar
Shdwdrgn
Contributing Author

Posts: 440
Joined: Wed Dec 07, 2011 4:04 pm
Location: CO, Longmont
Name: Jeff Taylor
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by Trail X » Tue May 20, 2014 9:51 am

I like it, I'd probably pull it back so that 32s and 3.42s isn't in the deep red. It's driveable. I'd put it pink. So I guess I'm saying, shift the red down a bit more.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by TBYODA » Tue May 20, 2014 10:15 am

Could you also expand the chart to include larger tires to show were the higher gear ratios starts to get pink --> red. Not that I am going there any time soon. :lol: Just think it would help those planning to re-gear in what they can do or can not do safely. Maybe also have a note that it is required to have a tranny cooler with a bypass near the pink zones. :scratch:
2008 TB Radflo coil overs, Z71 rear springs, 2" spacer, skyjacker N8030 shocks, LT285/75R16E Goodyear MTR

My Build ----- MY Youtube Channel
User avatar
TBYODA
Moderator

Posts: 1762
Joined: Mon Apr 01, 2013 9:07 pm
Location: NY, Rochester
Name: Robert Sengillo
Vehicle Year: 2008
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Limited Slip
Rank: Offroad Rated

by Shdwdrgn » Tue May 20, 2014 10:34 am

I'll leave the notations up to James if he wants to move these changes over to the site.

Red zone has been shifted some, let me know if it should slide more. I just have to change one number in the code to adjust the calculations, so its an easy change.

I increased the chart up to 40" tires so you can see the ranges... although I probably wouldn't suggest showing that much here on the site since it might give newcomers the wrong idea that they could actually build their truck that way.
GT5/G80, 265/70-16, PCMforLess + personal tuning, quad headlights
Self-made steel front bumper / pushbar / skid / CAI / lightbar
Shdwdrgn
Contributing Author

Posts: 440
Joined: Wed Dec 07, 2011 4:04 pm
Location: CO, Longmont
Name: Jeff Taylor
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by Trail X » Tue May 20, 2014 11:17 am

At first I thought 40"ers was too much, but then I remembered we had a few SAS guys that are still running the same transmission on some tires in that range, so maybe it makes sense.

I think I agree with the positioning of the red. Any other inputs on that?
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by navigator » Tue May 20, 2014 12:05 pm

I would agree that 3.42s and 32s would be pink.
I am running that combo right now without a cooler and have seen my temps get over 220 a couple of times either pulling my boat (in OD) or running down the interstate at 78 mph. Dropping down to 3rd pulling the boat or down to 75 on the interstate helped my temps.

I also live in flat country so guys in more hilly terrain or hotter summer temps might have more issues with temps creeping up.
"Please consider a search before posting. Folks on this site PIONEERED functional offroad use of these trucks."
The answer to many common lift questions can be found
here
My Build Thread
User avatar
navigator
Moderator

Posts: 4651
Joined: Wed Mar 09, 2011 10:16 am
Location: NC, Winnabow
Name: Chris
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Trail Ready

by TBYODA » Tue May 20, 2014 12:18 pm

navigator wrote:I would agree that 3.42s and 32s would be pink.
I am running that combo right now without a cooler and have seen my temps get over 220 a couple of times either pulling my boat (in OD) or running down the interstate at 78 mph.
:slap: :slap: :mrgreen: What are you waiting for to add a cooler it is very simple and cheap mod. You rather rebuild your tranny? IMHO your looking for failure.
2008 TB Radflo coil overs, Z71 rear springs, 2" spacer, skyjacker N8030 shocks, LT285/75R16E Goodyear MTR

My Build ----- MY Youtube Channel
User avatar
TBYODA
Moderator

Posts: 1762
Joined: Mon Apr 01, 2013 9:07 pm
Location: NY, Rochester
Name: Robert Sengillo
Vehicle Year: 2008
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Limited Slip
Rank: Offroad Rated

by Trail X » Tue May 20, 2014 1:04 pm

Good points Robert, but lets keep this thread on the topic of the calculators.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by Trail X » Thu May 22, 2014 9:03 am

The calculator on the ORTB page has been updated with Jeff's latest updates. Thanks again Jeff.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by N7RMK » Wed Dec 17, 2014 11:12 pm

ok so i have 3.42 gears and run 30.5" tires. at 65mph (gps confirmed) I'm running just a hair over 1800 rpm. according to the chart i should be 1704. am i missing something here?
User avatar
N7RMK
Cruiser

Posts: 48
Joined: Wed Jan 08, 2014 12:29 pm
Location: las Vegas
Name: ryan
Vehicle Year: 2003
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by Trail X » Thu Dec 18, 2014 12:07 am

If 65 on your speedometer matches your GPS saying 65, then your tires simply are stock diameter. Really no two ways about it.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by N7RMK » Thu Dec 18, 2014 12:33 am

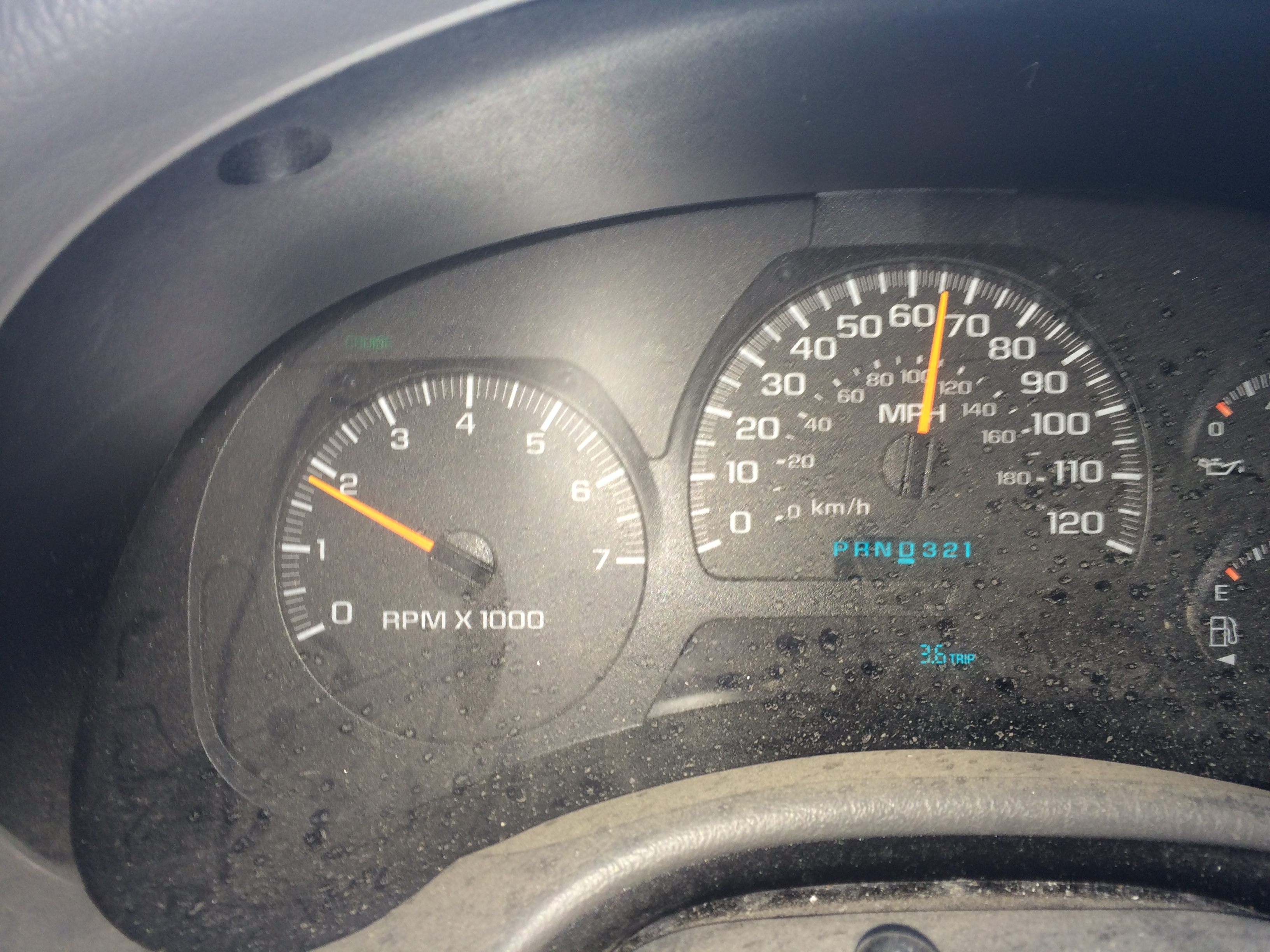

If you look at the pic the speedo is reading 66 mph. The GPS read 65mph sustained for miles . The tach is at just a hair over 1800 also sustained for miles. So again I ask what am I missing here? 65 mph 30.56" tire hair over 1800 on tach
User avatar
N7RMK
Cruiser

Posts: 48
Joined: Wed Jan 08, 2014 12:29 pm
Location: las Vegas
Name: ryan
Vehicle Year: 2003
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by Shdwdrgn » Thu Dec 18, 2014 12:40 am

No I think he's referring to the 100rpm difference in his tach... The numbers used for the calculations are based on what GM provided for a brand new system without any wear. You might have old transmission fluid, or slipping clutch plates, but my guess would be that your tach needle is simply inaccurate. Nothing on the dash can really be trusted. The only way to know for sure what your true RPM is would be to hook up a scanner to the ODB-II port and get the exact reading directly from the computer.

And if you really want an accurate comparison, you have to take into account that your speedo is showing 66mph (at which the chart says your tach should read 1731rpm). If your tires are completely worn down, that could make a difference of 1/2" or more, accounting for another 30rpm. Did you check your manufacture's website for the 30.5" diameter, or did you just pick that off of a general calculation for your tire size (any given size can vary by 1/2" diameter or more depending on the manufacturer and how aggressive the tires are)? Were you going up hill, down hill, or on a level surface? Was your torque converter locked? The point is, if you want to try and chase down a 100rpm discrepancy, then you need to get extremely accurate with the numbers you are using for your calculations.
GT5/G80, 265/70-16, PCMforLess + personal tuning, quad headlights
Self-made steel front bumper / pushbar / skid / CAI / lightbar
Shdwdrgn
Contributing Author

Posts: 440
Joined: Wed Dec 07, 2011 4:04 pm
Location: CO, Longmont
Name: Jeff Taylor
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by N7RMK » Thu Dec 18, 2014 12:46 am

Manufacture spec is 30.56 tires are maybe 5% worn. Level ground cruise control set (if that maters)
User avatar
N7RMK
Cruiser

Posts: 48
Joined: Wed Jan 08, 2014 12:29 pm
Location: las Vegas
Name: ryan
Vehicle Year: 2003
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

PreviousNext

Return to Wheels / Tires
